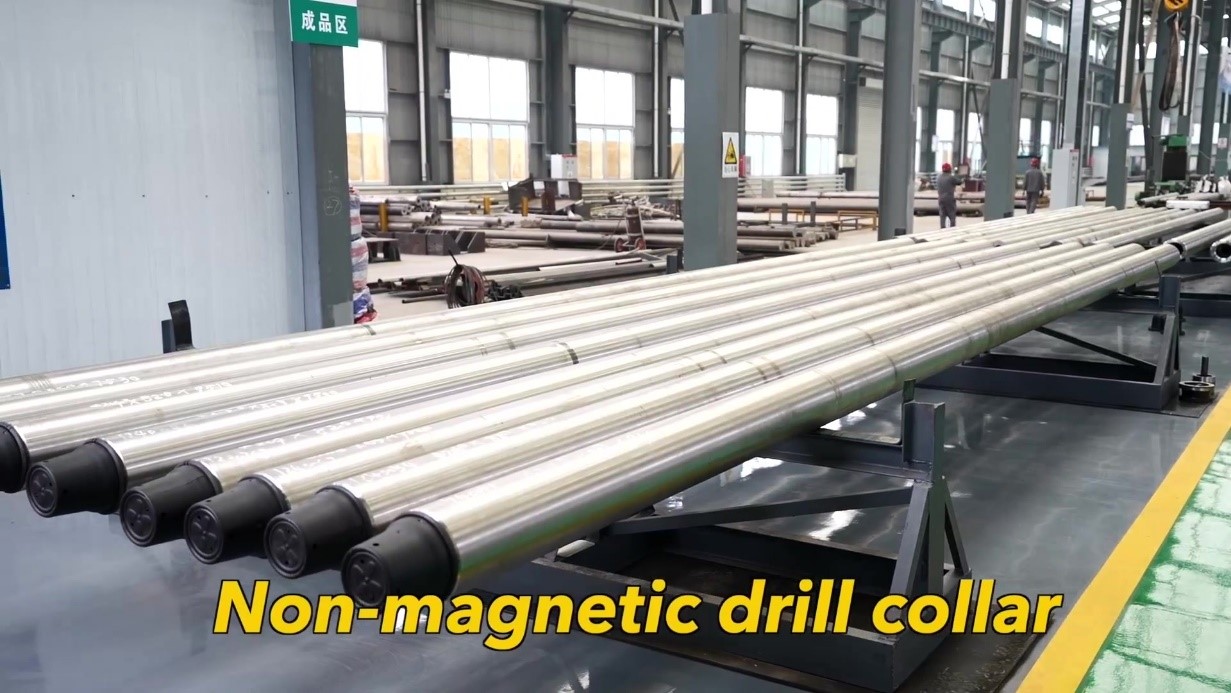

1. Product Overview
The high-performance non-magnetic drill collar is a critical component specifically designed for Measurement While Drilling (MWD) systems. Its primary function is to create a magnetically clean environment that ensures accurate readings from downhole directional sensors. By eliminating magnetic interference from surrounding drilling tools, this product plays an essential role in trajectory control, drilling efficiency, and operational safety—particularly in complex wells such as directional, horizontal, and extended-reach wells.
2. Material Properties and Metallurgical Advantages
This drill collar is manufactured using modified austenitic stainless steel, such as AISI 1445H or other custom-engineered low-magnetic alloys. Advanced metallurgical processes are employed to guarantee exceptional performance:
- Ultra-low magnetic permeability: μr ≤ 1.010 under an applied magnetic field of 1×10⁵/4π A/m, minimizing magnetic interference;
- Magnetic field gradient control: ≤ 0.05 μT per 100 mm, ensuring uniform internal magnetic field distribution;
- Excellent mechanical strength: Yield strength ≥ 758 MPa; tensile strength ≥ 965 MPa to withstand downhole loads;
- Superior corrosion resistance: Outstanding resistance to stress corrosion cracking (SCC) and chloride-induced pitting in high-H₂S and high-salinity environments;
- High wear and impact resistance: Designed for harsh downhole conditions including abrasive fluids and dynamic loads.
The manufacturing process involves vacuum melting, electroslag remelting (ESR), and precision heat treatment to achieve a stable microstructure and consistent magnetic performance.
3. Structural Design and Functional Features
The non-magnetic drill collar is characterized by a thick-walled, high-inertia structure with optimized mechanical and magnetic properties:
- Thick wall section: Typically 38–53 mm, which is 4–6 times the thickness of a standard drill pipe, effectively damping vibrations;
- Reinforced thread connections: Designed to endure high torque and axial loads with built-in tool joint protection;
- Precision-machined bore: Ensures excellent internal magnetic homogeneity, critical for sensor performance;
- High moment of inertia: Stabilizes the bottom-hole assembly, reducing tool face fluctuations and trajectory drift.
Its primary function is to shield sensitive directional sensors—such as magnetic compasses and azimuthal measurement devices—from stray magnetic fields generated by other components in the drill string.
4. Applications in Drilling Operations
High-performance non-magnetic drill collars are widely used in various drilling scenarios that demand precise directional control and reliable MWD/LWD operations:
- Directional and horizontal wells: Prevent unintentional deviation and ensure accurate wellbore placement;
- MWD/LWD operations: Protect magnetometers and improve measurement reliability;
- Complex formations: Maintain trajectory stability in high-pressure, high-temperature, or corrosive zones;
- Multilateral and extended-reach wells: Support precise azimuth and inclination tracking for complex well paths.
Typically, non-magnetic drill collars are positioned at both ends of the MWD tool assembly to create a controlled magnetic environment and isolate external interference during downhole data acquisition.
5. Technological Development and Future Trends
As the industry moves toward deeper and more complex reservoirs—including unconventional resources—the performance expectations for non-magnetic drill collars continue to evolve. Key development trends include:
- Innovative materials: Development of new non-magnetic alloys such as high-nitrogen stainless steels and titanium-based materials;
- Enhanced magnetic inspection: Adoption of high-resolution scanning and micromagnetic imaging to assess internal field uniformity;
- Smart drill collars: Integration of miniature sensors for real-time monitoring of stress, temperature, and vibration;
- Modular product design: Compatibility with diverse MWD/LWD systems to enhance operational flexibility and standardization.
6. Conclusion
More than just a structural element, the non-magnetic drill collar is an essential enabler of high-precision downhole measurement and trajectory control. Its material properties, structural integrity, and magnetic shielding capabilities directly impact drilling safety and efficiency. As intelligent drilling technology advances, the demand for robust, high-performance non-magnetic drill collars will continue to grow—making them a key focus in the ongoing evolution of oilfield engineering.
Post time: Apr-30-2025
