Technical Overview of Landing Nipple

1. 1.      Introduction
   In the exploration and development of oil and gas resources, the accurate deployment and positioning of downhole tools are critical to operational safety and efficiency. The Landing Nipple is one of the essential components in the well completion system, providing a standardized interface for tool landing and sealing. It plays a vital role in facilitating a wide range of downhole operations. This article presents a comprehensive overview of Landing Nipples, including their structural design, classifications, technical features, and applications.

2. Definition and Function

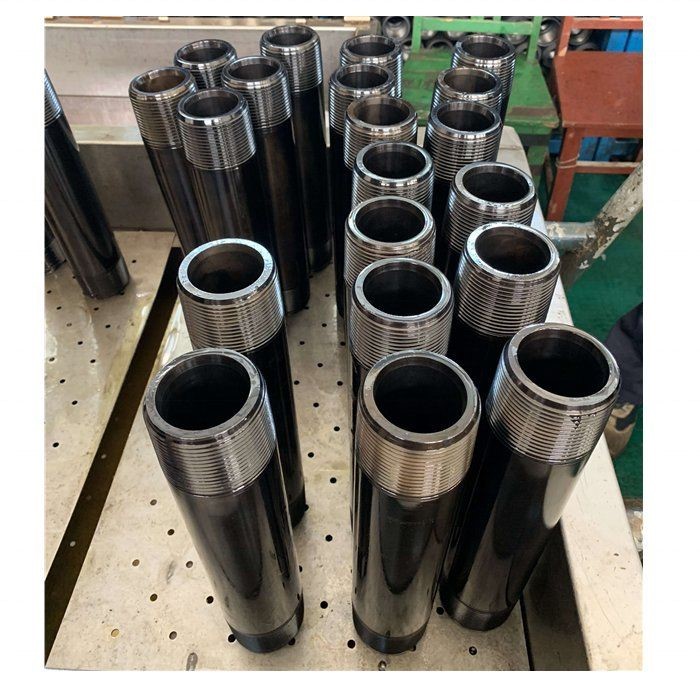

A Landing Nipple is a short, internally machined tubular component installed within the tubing string. It provides a stable, sealed, and reusable receptacle for various insertable downhole tools, such as plugs, flow control valves, and safety valves. When the tool is lowered into the well, it lands precisely inside the nipple and is secured in place through shoulders, sealing bores, or locking mechanisms. Landing Nipples are widely used in operations such as isolation, testing, zonal production, and intelligent well control.

3. Structural Features
Landing Nipples are typically manufactured from alloy or corrosion-resistant steels, and their key structural components include:

• Body: Connected to the tubing string and designed to withstand axial loads and internal pressures.
• Machined Bore: Precision-machined internal area for interference fit or sealing with the insert tool.
• Landing Shoulder or No-Go Profile: Ensures accurate positioning of tools and prevents further descent.
• Sealing Mechanism: May include metal-to-metal seals, elastomeric O-rings, or other configurations to ensure gas-tight and liquid-tight integrity.

The overall design must accommodate harsh downhole conditions, including high pressure, high temperature, and corrosive environments, while ensuring compatibility with industry-standard tools.

4. Classification
Landing Nipples can be categorized based on design and function:

• Standard Landing Nipple: Equipped with a no-go shoulder for locating tools at a fixed depth.
• Selective Landing Nipple: Allows multiple nipples in the same string; tools can be selectively landed using unique keys or profiles for multi-zone operations.
• Side Pocket Nipple: Designed with an eccentric bore, commonly used for installing side-entry tools like gas lift valves or chemical injection valves.
• X-Type / N-Type / R-Type Nipples: Based on API standardized profiles to ensure interchangeability with commercially available tools.

5. Application Scenarios
Landing Nipples are integral to various temporary and permanent downhole operations, including:

• Isolation Operations: Used with plugs or packers to isolate specific well sections.
• Zonal Production / Water Injection: Paired with flow control devices to independently manage different zones.
• Downhole Testing: Serves as a temporary seal and support point for test equipment.
• Safety Valve Installation: Acts as a receptacle for subsurface safety valves to ensure well control.
• Intelligent Wells: Integrated with monitoring and control equipment for digital oilfield management.
• Chemical Injection Systems: Enables installation of injection valves for corrosion control, scale inhibition, or production optimization.

6. Design and Manufacturing Requirements
The design and production of Landing Nipples must meet stringent industry standards:

• Dimensional Standardization: Must comply with API, ISO, or other applicable norms for tool compatibility.
• Material Selection: Based on corrosion resistance needs, materials such as 13Cr, Inconel, or other alloys are selected, often with additional surface treatments.
• Precision Machining: Sealing bores and shoulders require high-precision manufacturing to ensure tight tolerances and reliability.
• Pressure and Temperature Ratings: Design specifications must align with downhole conditions, typically ranging from 5,000 to 15,000 psi and suitable for high-temperature environments.

7. Maintenance and Replacement
Although Landing Nipples are generally permanent installations with long service life, routine inspections are necessary, especially in wells with frequent tool retrievals or severe downhole conditions. Tools like downhole cameras or inspection gauges can assess wear or damage. In cases of seal degradation or mechanical wear, timely replacement is critical to prevent tool failure or operational hazards.

8. Conclusion
While structurally simple, the Landing Nipple is a fundamental component that supports the entire lifecycle of a well. It provides a standardized, secure interface for a wide array of downhole tools, forming the backbone of many completion and intervention operations. As oilfield technology evolves, Landing Nipples continue to be refined for greater durability, higher pressure and temperature resistance, and compatibility with intelligent well systems—ensuring their continued relevance in digital and complex field developments.
